A large number of microphones are placed in the measuring vehicles. These are, on the one hand, standard microphones which are meant to be used by a communication system and, on the other hand, the microphones of the head and torso simulators (HATS). The HATS meet the criteria defined in ITU-T Rec. P.58. Special binaural headsets to record aurally accurate signals (e.g. Head acoustics BHS II with SQuadriga III) may be used in addition.

All microphones are calibrated to the same target value. Calibration is performed using a 1 kHz calibrator such that 114 dBSPL at the microphones corresponds to an unweighted digital power level of -10 dB. A digital power level of -10 dB may be interpreted as -10 dBov if the allowed value range of the signals is [-1,+1].

To give a rough location of a microphone, the zone convention from ITU-T Rec. P.1150 is used. According to this convention, each seat in the vehicle is assigned a zone number, starting with the driver's seat as zone one. Zone numbers are incremented by moving through a row from left to right before moving from the front of the vehicle to its back. A graphical overview of the zones in a vehicle is inlcuded in the vehicle-specific information below.

Vehicle-specific Information

The following will give a desription of the microphones in each vehicle. For graphical overviews of the microphone locations in the vehicles, please refer to the bottom of the page



{tab-cars V Class (Daimler)}

Zones

The above illustration shows the zone definition within the V Class according to ITU-T Rec. P.1150. Please note that zones 4 and 7 only have standard microphones allocated to them.

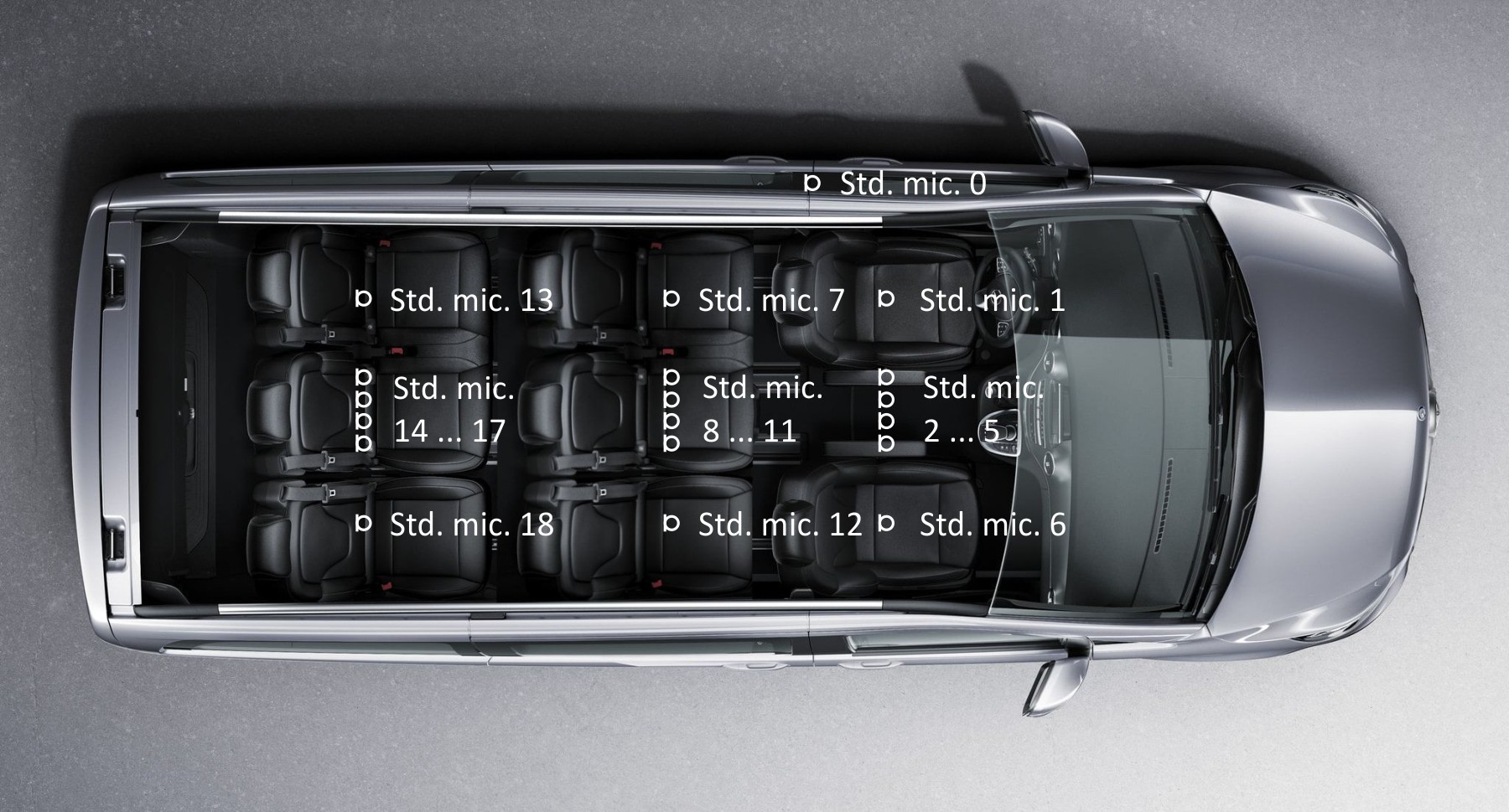

Standard Car Microphones

All standard microphones (see datasheet) were added in a custom retrofit. All 6 outer seats/zones have a single microphone above the seat. The two middle seats in the second and back row have an array consisting of 4 individual microphones above the seats. Such a microphone array is also placed in the first row between driver and codriver. An additioanal microphone is integrated into the lef B-pillar of the vehicle. In total there are 19 standard microphones. On all outer seats a HATS (or a puppet with binaural headset) was placed to simulate the human hearing. Taking these 12 microphones into account, there are a total of 31 microphones inside the V Class.



Arrays of four microphones and a microphone above each measured seat are placed at the ceiling of the vehicle.

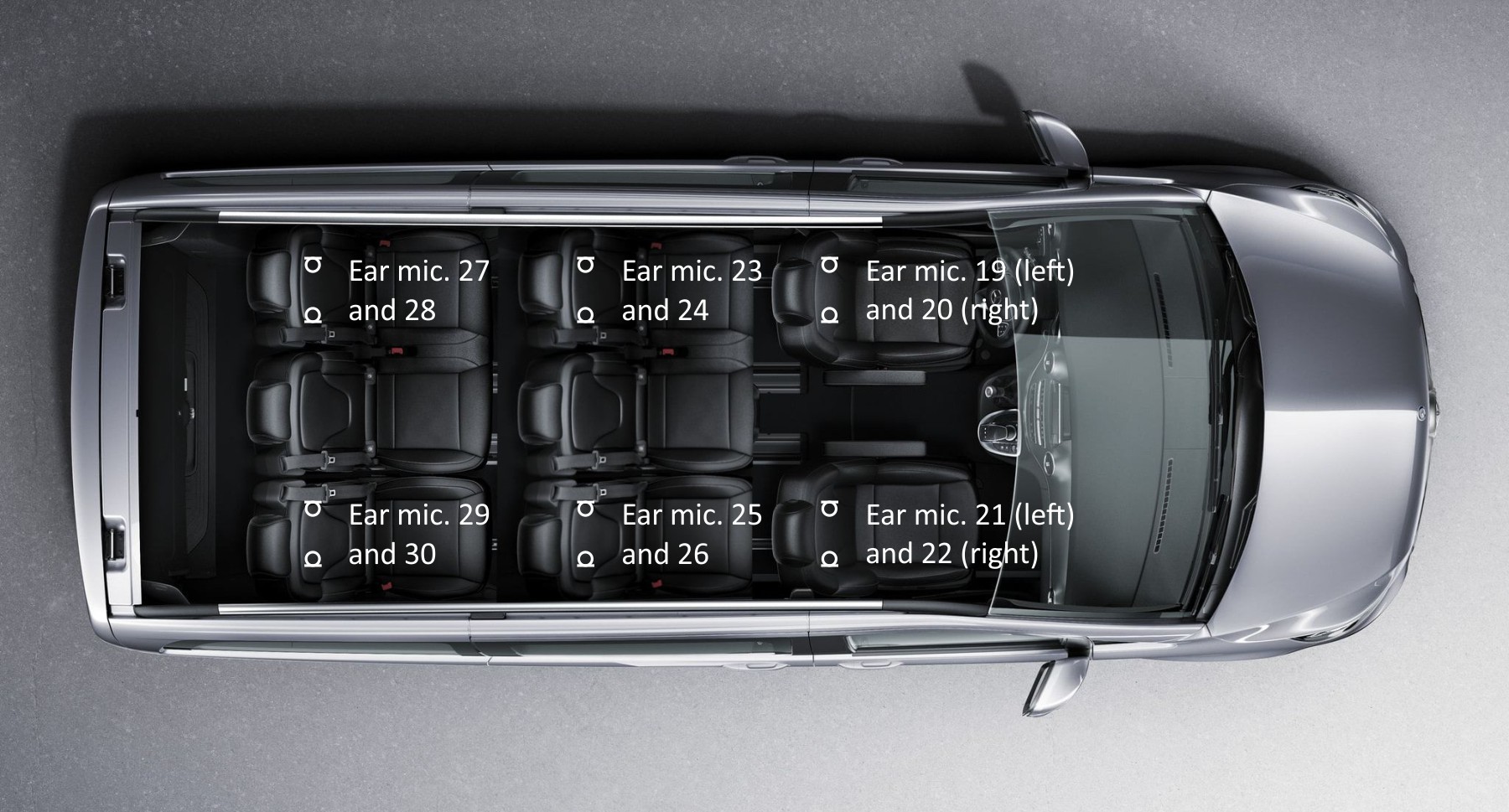

Ear Microphones

There are microphones placed in the ears of the HATS to simulate human hearing.



Details

ID Type Zone Description X position Y position Z position
0 Standard 1 Standard microphone at the left B pillar -66,00 cm 32,00 cm -15,00 cm
1 Standard 1 Standard driver microphone -46,00 cm 0,00 cm -5,00 cm
2 Standard 1/2 Microphone array in between driver and passenger, microphone within the array that is located closest to the driver  -6,00 cm 0,00 cm -5,00 cm
3 Standard 1/2 Microphone array in between driver and passenger, microphone within the array that is located second closest to the driver  -2,00 cm 0,00 cm -5,00 cm
4 Standard 1/2 Microphone array in between driver and passenger, microphone within the array that is located second closest to the passenger   2,00 cm 0,00 cm -5,00 cm
5 Standard 1/2 Microphone array in between driver and passenger, microphone within the array that is located closest to the passenger   6,00 cm 0,00 cm -5,00 cm
6 Standard 2 Front passenger (codriver) microphone 46,00 cm 0,00 cm -5,00 cm
7 Standard 3 Standard microphone for left passenger in second row -46,00 cm 95,50 cm 0,00 cm
8 Standard 4 Microphone array in second seat row, microphone within the array that is located most left -6,00 cm 95,50 cm 0,00 cm
9 Standard 4 Microphone array in second seat row, microphone within the array that is located second most left -2,00 cm 95,50 cm 0,00 cm
10 Standard 4 Microphone array in second seat row, microphone within the array that is located second most right 2,00 cm 95,50 cm 0,00 cm
11 Standard 4 Microphone array in second seat row, microphone within the array that is located most right 6,00 cm 95,50 cm 0,00 cm
12 Standard 5 Standard microphone for right passenger in second row 46,00 cm 95,50 cm 0,00 cm
13 Standard 6 Standard microphone for left passenger in back row -46,00 cm 196,50 cm 0,00 cm
14 Standard 7 Microphone array in back row, microphone within the array that is located most left  -6,00 cm 196,50 cm 0,00 cm
15 Standard 7 Microphone array in back row, microphone within the array that is located second most left -2,00 cm 196,50 cm 0,00 cm
16 Standard 7 Microphone array in back row, microphone within the array that is located second most right 2,00 cm 196,50 cm 0,00 cm
17 Standard 7 Microphone array in back row, microphone within the array that is located most right 6,00 cm 196,50 cm 0,00 cm
18 Standard 8 Standard microphone for right passenger in back row 46,00 cm 196,50 cm 0,00 cm
19 Ear 1 Driver, left ear microphone -53,00 cm 27,00 cm -35,00 cm
20 Ear 1 Driver, right ear microphone -39,00 cm 27,00 cm -35,00 cm
21 Ear 2 Front passenger (codriver), left ear microphone 39,00 cm 27,00 cm -35,00 cm
22 Ear 2 Front passenger (codriver), right ear microphone 53,00 cm 27,00 cm -35,00 cm
23 Ear 3 Left passenger in second row, left ear microphone -53,00 cm 125,50 cm -35,00 cm
24 Ear 3 Left passenger in second row, right ear microphone -39,00 cm 125,50 cm -35,00 cm
25 Ear 5 Right passenger in second row, left ear microphone 39,00 cm 125,50 cm -35,00 cm
26 Ear 5 Right passenger in second row, right ear microphone 53,00 cm 125,50 cm -35,00 cm
27 Ear 6 Left passenger in back row, left ear microphone -53,00 cm 215,50 cm -35,00 cm
28 Ear 6 Left passenger in back row, right ear microphone -39,00 cm 215,50 cm -35,00 cm
29 Ear 8 Right passenger in back row, left ear microphone 39,00 cm 215,50 cm -35,00 cm
30 Ear 8 Right passenger in back row, right ear microphone 53,00 cm 215,50 cm -35,00 cm
